SeaTec, Rutgerson RAW 50mm bloque simple con grillete de pasador

Descripción

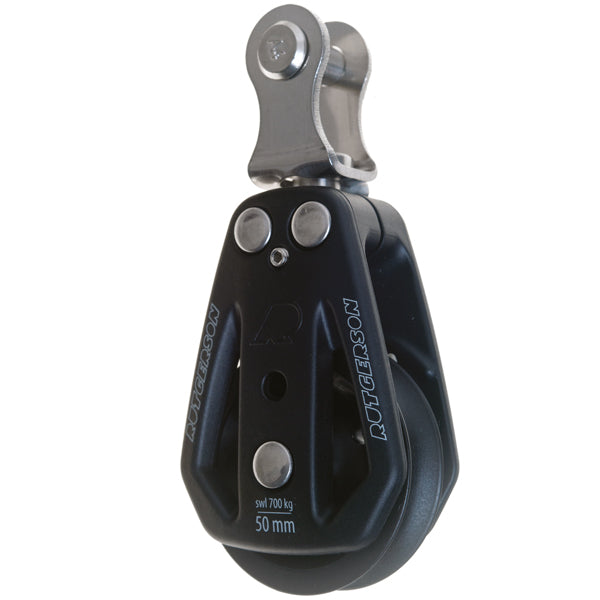

Rutgerson RAW 50mm single block with pin shackle is a swivel single block designed for efficient rope handling. It is used in rigging and mast installations, where it ensures safe and stable rope handling under high loads.

• A: 50 mm
• Working load: 700 kg
• B: 80 mm
• Breaking strength: 1250 kg
• C: 6 mm
• D: 12 mm
• Material: Stainless steel
• Max line: 4-12 mm
• Sheave diameter: 50 mm
• Rope Ø: 14 mm
• Product weight: 124 g
• Ø: 50 mm
• Product dimensions: 80 mm
• Package dimensions: Gross weight: 0.02 kg

Provides safe and stable rope handling. It is particularly suitable for mast installations, where a movable mounting point helps follow the direction of the load and reduce unnecessary wear.

The construction is based on a spherical plain bearing combined with a high-strength composite material. This provides smooth operation, high mechanical strength, and a long service life in a marine environment. The swivel top attachment with clevis pin ensures free movement under load.

The solution is typically used at the mast base and other places in the running rigging, where the load angle changes during use.

The low weight and robust construction make the product relevant for both cruising and performance vessels.
